Syphon

Syphon

Syphon

At Instrumxx Industries, as a leading syphon tube supplier, we feature a wide array of configurations based on end-user requirements such as NPT, BSP, Butt Weld, Flanged, Socket Weld or Compression outlets. Syphons are used to protect the pressure measuring instruments from steam or high temperature fluid. Syphon reduces the temperature of the process fluid by dissipating the heat. It also helps to reduce the line surge fluctuations.

We offer U-type syphons suitable for vertical pipe mounting. Coil / Pigtail syphons are suitable for horizontal pipe mounting. Syphons can be selected in terms of pipe schedule or pressure rating.

Syphon Tube Pictal Type | Ss Syphon Tube | Syphon Tube U Type | Syphontube | Stainless Steel Syphon Tube | Pig Tail Type Syphon Tube | Coil Type Syphon Tube | Staines Steel Syphon Tube Manufacturer | Syphon Tube Supplier | Syphon Manufacturer | Syphon tube | Syphon and snubber | Syphon Supplier in India

  • Types: 1) Coil type Syphon 2) Pig tail type Syphon 3) U-type Syphon.
  • Material of Construction (MOC: Stainless Steel, Carbon Steel, Alloy Steel.
  • Size / Schedule: 1/4” to 1” & sch. 40, 80, 160.
  • End connection: Plain,Threaded & Socket Weld.
  • Testing: Syphons are tested at 150 PSI Pneumatically.
  • *IBR approved Syphon are available on request

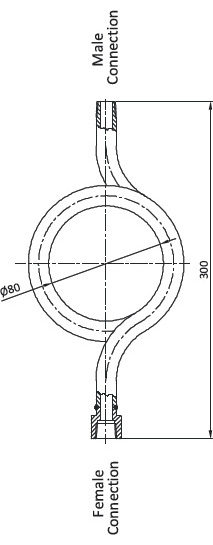

Coil Type Syphon

Coil Type Syphon

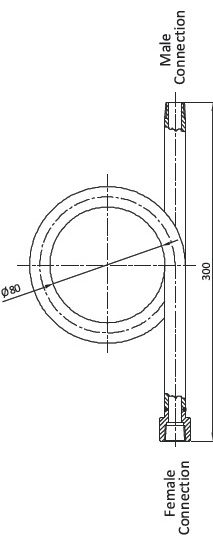

Pig Tail Type Syphon

Pig Tail Type Syphon

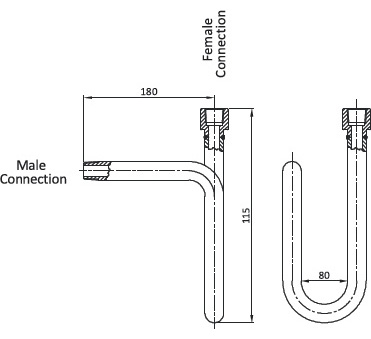

U Type Syphon

U Type Syphon

Snubber

A snubber is a circuit that acts as a protection by limiting or stopping (snub) voltage spikes i.e. switching voltage amplitude and its rate of rise, therefore reducing the total power dissipation. It operates by clamping the voltage spikes but does not alter the ring frequency of the system. Snubbers are used with pressure gauges where sudden pressure shocks and fluctuations are present , which cause the pointer to fluctuate rapidly hence making it difficult to take the gauge reading. Snubbers considerably reduce pulsations and hence makes the gauge reading easier and also improves the life of the gauge.

A snubber is a circuit that acts as a protection by limiting or stopping (snub) voltage spikes i.e. switching voltage amplitude and its rate of rise, therefore reducing the total power dissipation. It operates by clamping the voltage spikes but does not alter the ring frequency of the system. Snubbers are used with pressure gauges where sudden pressure shocks and fluctuations are present , which cause the pointer to fluctuate rapidly hence making it difficult to take the gauge reading. Snubbers considerably reduce pulsations and hence makes the gauge reading easier and also improves the life of the gauge.

Specification

  • Material of Construction (MOC): Stainless Steel, Carbon Steel, Alloy Steel & special like Monel & Inconel.
  • Testing: Valves are tested at 3000 PSI Hydraulically & 150 PSI Pneumatically.
Snubber

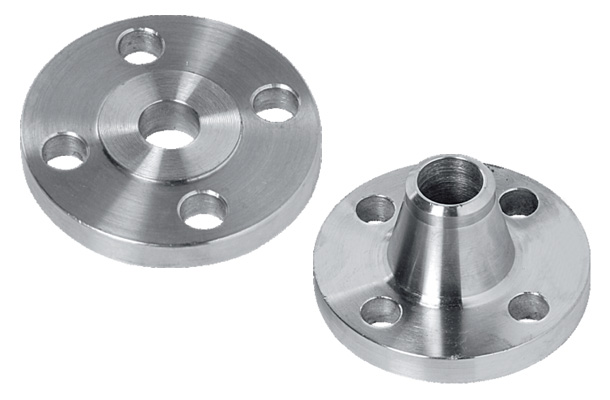

Flanges

Instrumxx Industries features types of flanges made from different materials like Stainless Steel, Carbon Steel, Alloy Steel & special alloys like Monel & Inconel. Flanges are essential to form connections with the piping system and strengthen it. Using these pipe fittings adds flexibility when maintaining piping systems by allowing for easier disassembly and improved access to system components.

Our range of industrial flanges are ideal for application in diverse industries for high pressure and temperature applications. Instrumxx offers the following types of flanges.

Threaded Flanges

Also known as a screwed flange, this style has a thread inside the flange bore which fits with the matching male thread on the pipe or fitting. The threaded flange connection means you can avoid welding in many use cases. Simply match the threading to the pipes you wish to connect.

Socket-weld Flanges

Ideal for smaller pipe diameters in low-temperature and low-pressure scenarios, socket-weld flanges feature a connection in which you place the pipe into the flange and then secure the connection with a single multi-pass fillet weld. This makes this style simpler to install than other welded flange types while avoiding the limitations associated with threaded ends.

Lap Joint Flange

A lap-joint flange requires two piping components for each side of the flanged connection, a stub end and a loose backing flange. The loose backing flange fits over the outside diameter of the stub end, which is butt-welded to the pipe. The backing flange is not welded to the pipe, and it can be rotated, which is particularly useful when it is necessary to orientate flanges during erection.

Slip-on Flanges

Slip-on flanges are very common and are available in a large range of sizes to accommodate systems with higher flow rates and throughout. Simply match the flange to the outer diameter of the pipe you intend to connect. Installation is slightly more technical as you’ll need fillet weld both sides to secure the flange to the pipe.

Weld Neck Flange

Weld neck flange and long weld neck flange provide reinforcement in application requiring high pressure and during low and high pressure extremes. It also helps in low cycle fatigue caused by line expansion of other variable forces.

Blind Flanges

Used for terminating or isolating piping systems, blind flanges are essentially boltable blank discs. When installed properly and combined with the correct gaskets, they can achieve an outstanding seal which is easy to remove when needed.

Specification

  • Type: Slip-on, Blind, Weld Neck, Threaded & Socket-Welded, Lap-Joint, Orifice Flange & Orifice Plate.
  • Material of Construction (MOC): Stainless Steel, Carbon Steel, Alloy Steel & special like Monel & Inconel.
Size / Rating:
  • 1/2" to 12" NB / ASA# 150, 300, 600, 900, 1500 & 2500 lbs. - (as per ANSI B16.5)
  • 10mm TO 300mm ND / PN 6, to PN 40 - (as per DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2631, DIN 2633, DIN 2634, DIN 2635, DIN 2636)
  • 10mm TO 300mm ND / Table 4 to 42 - (as per IS 6392)
  • 1/2" to 12" NB / TABLE D, E, F, H, J & K - (as per BS 10)
Flanges

Why Instrumxx Industries?

Instrumxx Industries is a leading syphon, snubber, and flange manufacturer, supplier, and exporter. The company offers instrumentation tube fitting accessories made from high-quality raw materials. Every product offered by Instrumxx undergoes stringent quality tests, from raw material selection and manufacturing to dispatch. Experts at our company guide customers with product guidance and other queries. Explore the extensive range of flanges, syphons, snubbers, and other pipe fittings accessories today!
